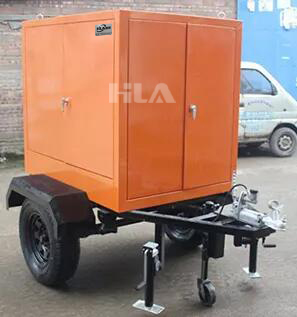

High Vacuum Transformer Mobile Oil Purifier Movable Trailer With
Closed Doors
Application:
VPM Moveable Weather-proof type Vacuum Transformer Oil Purifier is
developed for transformer oil degasification, dehydration and
filtration processing on site at outside. It adopts full enclosed
structure with function of weather proof.
The VPM Transformer Oil Purifier Machine adopts double stages high
vacuum system and horizontal vacuum separators.Double Stage
Efficient Vacuum Transformer Oil Purifier to be used for treatment
to new oil, imported oil and Ultra High Voltage transformer oil,
particularly applicable to 110KV above power distribution system
and the national grid, shorten the oil treating duration during
installation and maintenance of transformer.
VPM Moveable Weather-proof type Transformer Oil Purifier with
trailer can be carried out on road and off road. Meanwhile, it also
works with other electrical insulating oil such as cable, circuit
breakers, capacitor etc. The Purification Process of VPM
Transformer Oil Purifier is able to maintain complete cleanness and
improve dielectric strength of insulating oil.
Features:
♥ One pot with two-stage vacuum-segregating space, it comes into
being different pressure so as to keep oil line balance between two
stages.
♥ Imported vacuum-pump from Europe has preceding level in the world
and high air pump speed guarantee high working vacuity.
♥ New technology of vacuum-segregating adopts particular spinning
disk and stainless steel machine with dehydration and air pump
♥ Using new type of heating equipment which can reduce heating
burthen and extend oil life.
♥ Oil level control adopts photoelectric way of which the main
components are imported from Switzerland.
♥ Customers can choose equipment equipped with all or partly
imported components.
♥ It can equipped with filter assemblies imported from Italy.
♥ All pumps must be airproofed by our factory, moreover running
without noise and leakage. extended oil life.
♥ Advanced cooling system of vacuum pump, it reduces the frequency
of oil’s replacement and extends the life of vacuum pump.
♥ Advanced infrared level automatic control system, interlocking
control for pressure protection and power heating system ensures
the long-term safe and reliable operation of the equipment.
♥ Online oil treatment, vacuum drying and vacuum oil-filling for
electric equipments.
♥ Being able to remove water and gas fast and effectively under
high vacuum and high speed operation status,drying the insulating
oil very well, improve the breakdown voltage up to 75 KV quickly.
Have a big improvement on the one time purification result,reduce
the dangerous of oil aging caused by repeat heating on the ordinary
oil purifier.
♥ Being able to remove the trace moisture and various gas in the
oil rapidly, ensure zero acetylene existence in the oil.
Technical Parameters:
| Model | VPM50 |
| Capacity(L/min) | 50 |
| Vacuum level | -0.06～-0.099 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20 ～ 80℃ |
| Filtering precision | ≤1 micron |
| Breakdown voltage | ≥ 75KV |
| Water content | ≤ 3ppm |
| Gas content | ≤ 0.1% |
| Filtering particles | ≥ 99.5% |
| Power supply | 380V, 50HZ, 3PH (or customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 30 |
| Total power (kw) | 32 |
| Inlet/outlet(mm) | 38 |
| Purifier Weight (kg) | 650 |
| Trailer Weight (kg) | 300 |
Purifier Dimension (mm) | L | 1300 |
| W | 1000 |
| H | 1300 |
Trailer Dimension (mm) | L | 2500 |
| W | 1000 |
| H | 1200 |
Index Of Purified Oil:
| Breakdown voltage | ≥ 75KV |
| Water content | ≤ 3ppm |
| Gas content | ≤0.1% |
| Filtering particles | ≥99.5% |
| Particles size | ≤ 1 micron |
| Cleanness | ≤ Grade 6 (NAS) |
| Processing by regeneration device as following (Optional device) |
| Acid value | ≤ 0.03 mgKOH/g |
| Water-solubility | ≥ 5.4 PH |
| Flash point (close cup) | ≥ 135°C |
| Dielectric- factor loss | tgδ (90℃)% ≤ 0.005 |
