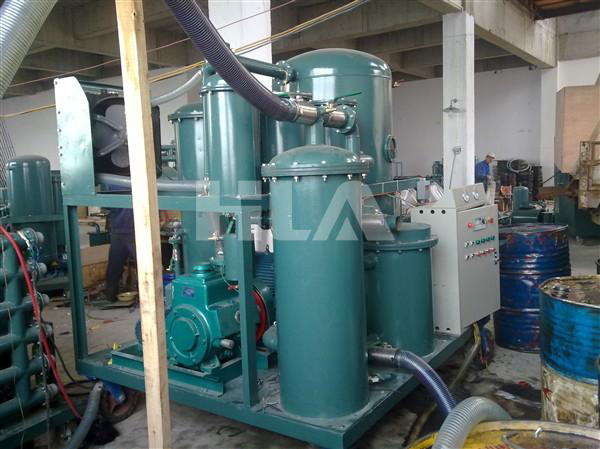

Selected Materials Portable Lube Oil Purifier / Bearing Oil
Purification System
Application:
Generally, hydraulic oil is to be maintained at very high quality
of Purification. The Oil often having large sizes of particles is
passed through coarse type filter, to trap the large sized
particles. Having taken care of micronic and sub-micronic
particles, it is further finely cleaned by electro-statically,
operated hydraulic oil cleaner & brought to the international
standards.LVP series oil purifier also can be used for purification
of turbine oil, gear oil, engine oil,compressor oil, refrigeration
oil and other industrial oils, so it is wildly applied in electric
power, metallurgy, mining, chemicals, transportation,
manufacturing, petroleum, railway etc.
Adopt the high quality filter materials, which have a good function
in anti-corrosive, thermo stable, mechanical strength. Especially,
the precision of eliminates impurity is high and the service life
is long. Also, it has a large volume for storing the impurities.
The combination of coalescing separation filter and vacuum
dehydration system which dewater effectively and thoroughly.The
unique degas and dewater technology: Using the Duplex 3D
Stereo-Evaporation technical, which can separate the water and gas
from the oil quickly by the Multi-level water-oil separation
technology. It can remove the free and dissolved water from the oil
thoroughly.
Feature:
● Ideal for gear & bearing oil purification
● Eight models are available to accommodate various flow rates
● Continuously removes free water down to 50 ppm or less
● Fluid cleanliness grade (NAS) to 6 or better
● Dual water and particulate removal
● Coalescence-separation technology
● Double-infrared fluid level controller
● A trinity of interlocked preventive device
● Carbon fiber infrared heating system
● Automatic back-flushing system.
Advantage:
This model is tailored according to the nature of gear & bearing
oils, so it can effectively remove liquid, solid and gas impurities
from used oil, expanding the service life of oil and the operating
efficiency of machinery. The recycling process also enhances oil
quality and restores the oil’s color.
Technical specification:
| Model | LVP250 |
| Capacity(L/min) | 250 |
| Working vacuum | -0.06～-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20-80℃ |
| Water content | ≤10 ppm |
| Gas content | ≤ 0.1% |
| Demulsifying value | ≤8 min(GB/F7035) |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤1 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 150 |
| Total power (kw) | 166 |
| Inlet/outlet(mm) | 60 |
| Weight (kg) | 1300 |
Dimension (mm) | L | 2000 |
| W | 1250 |
| H | 2050 |
Available Parts for customer option:
1. Fully closed-type for protecting oil purifier machine (weather
proof, vacuum proof, Waterproof, dustproof etc.)
2. Mobile trailer with enclosed type can move long distance working
in field.
3. Choosing different vacuum pump, oil pump and electric parts(such
as SCHNEIDER, SIEMENS,LEYBOLD,ABB,EDWARDS,PVR etc.)
4. PLC controller for operation fully-automatically and explosion
proof materials
On-line Moisture detector, flow meter, viscosity tester, acidity
tester etc.
