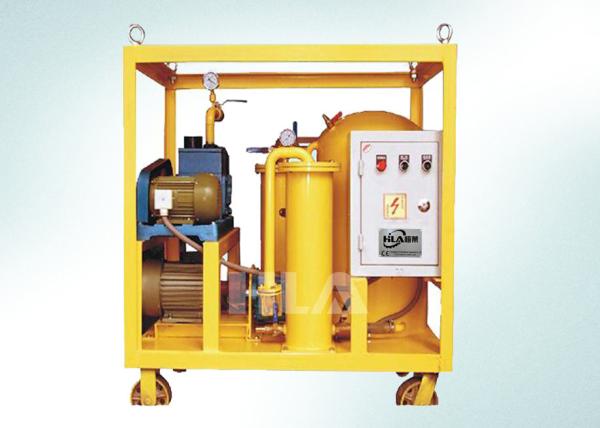

Heavy Fuel Industrial Vacuum Oil Filter Machine Waste Oil Disposal
Device
Application:
Series ZYF series portable oil filtration & filling machine is
developed and produced by our company for oil filling & filtration.
It is an ideal equipment for enterprises to transfer different
kinds of oil from one container to another, and at the same time
the oil goes through filtration process.
ZYF series are applicable to filter mechanical oil, hydraulic oil,
compressor oil, turbine oil, insulating oil, gasoline and diesel
engine oil and other low viscosity lubricating oil. It is very
convenient to transfer oil, filling oil to electrical equipment
together with filtration process.It can be used for purifying
cooking oil such as rape oil, sesame oil, peanut oil, coconut oil,
etc. if it is made by stainless steel and innocuous filter element.
Work principle of ZYF:
Waste oil first enters the coarse filter system, after processed,
large particles of impurities is removed.In order to protect the
pump from being damaged,processed oil is pumped back into the
secondary filtration system, then the oil enters coalescing filter
chamber, as coalescing filter material with unique role of polar
molecular structure, after passing through this kind of filters the
free water in oil and emulsified water gathered into bigger
droplets, sinked to the water storage tank under gravity. In the
inertia, tiny water molecules accompany with oil to the separation
filters.
Hydrophobic separation filter element is made of special material,
when oil through, the fine water moleculesare kept outside from
filter element, after mutual aggregation, And by gravity sinked to
the lowerportion of the coalescing chamber storage tank, finally
discharged. After dehydration process, oil into fine filtration
system to ensure that the oil cleanliness which meet the user
design standards.
Features
1. The machine is light and portable, easy to operate, low-noise.
2. It can transfer oil from a long distance and high lift, no need
of filter paper, cheap and environmentally friendly.
3. Precise three-stage filter system can remove solid mechanical
particulates and other impurities.
4. The machine is installed with well-sealed anti-explosion
electric control cabinet(optional)
Technical parameters:
| Index name | Unit | ZYF-150 |
| Flow rate | L/h | 9000 |
| Air-pumping speed | L/s | 150 |
| Working vacuum | Pa | ≤133 |
| Ultimate vacuum | Pa | ≤7 |
| Power supply | | 380V 3Ph 50Hz (As per user’s option) |
| Totol power | KW | 13.2 |
| Cooling system | | Water cooling |
| Weight | Kg | 1500 |
Dimension(mm) | L | 1400 |
| W | 1000 |
| H | 1700 |
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting
experience
Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
