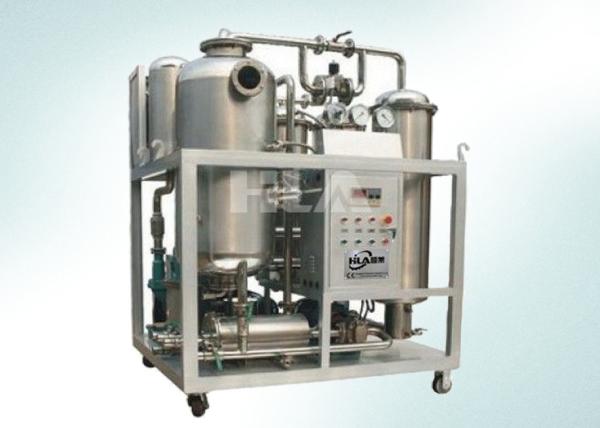

Vegetable / Resturant Oil Cooking Oil Purifier Machine 27 Kw 600
L/hour
Application:
Filtering cooking oil has many benefits, from extending the life of
the oil to increasing the food quality. Our DSF cooking oil
purifier can greatly increase the usable life of your cooking oil
by removing water, impurities, odor, acidity, color etc, instead of
simply replacing the oil. This system will give you more use out of
your restaurant's cooking oil. It is safer for employees, it lasts
longer, and it removes the unsightly waste that normally comes with
frying oil.
DSF cooking oil purifier can save you up to 50% on your oil
purchasing, reduce your storage needs, reduce your oil disposal
needs, increase the taste and quality of your foods and provide
your customers healthier deep fried foods.
Features:
◆ Stainless steel coarse filters, anti-corrosion and anti-corrupt.
large capacity of holding particles, good mechanical performance,
long lifetime.
◆ Advance vacuum dehydration system, pressure filters, oil water
separator and high precision filters. The water content less than
10 ppm and filtering precision less than 1 micron
◆ Using the most advanced atomizing separation technology, oil
atomization ≤ 50um, multiple opportunities to enhance the gas
molecules and water molecules exposed to the vacuum system and
extends the flowing distance in the vacuum system to ensure water
and gas vaporized sufficient time to complete removal of moisture
and gas
◆ Heating system adopts low-load design to ensure uniform heating
oil, the load is less than 1.0W/cm2, avoiding cracking and aging of
oil.
◆ Oil level control, pressure control, voltage protection, phase
sequence protection etc. adopts automatic control, the full
realization of unmanned control.
◆ Heating system safety interlock protection control, avoiding
heater dry.Adjustable temperature range of 20-80℃, the heater
control in multiple groups
◆ Advanced vacuum defoaming technology to avoid the oil ejecting
and gushing during the process
◆ The filters of DSF, made of the stainless steel, is anti-rust and
anti-corrupt. It makes sure the filtered oil is completely clear
without any impurity.The precision is quite high and the service
life is long. Also, it has a large volume for storing the
impurities.
◆ After the water separator treat the oil, it just contains the
tiny water and soluble water.
◆ The vacuum separator adopts three-dimensional duplex evaporation
and film evaporation. The tiny water, soluble water, acid, alcohol,
other volatility liquid and so on can be removed completely and
effectively.
◆ It can be equipped with back flushing system, which can clear
impurities automatically.
◆ Simple operation, reliable, and safe.
Technical specification:
| Model | DSF10 |
| Capacity(L/min) | 10 |
| Working vacuum | -0.06～-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20-80℃ |
| Water content | ≤10 ppm |
| Gas content | ≤ 0.1% |
| Acid Value | ≤0.05 mKOH/g |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤1 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 24 |
| Total power (kw) | 27 |
| Inlet/outlet(mm) | 25 |
| Weight (kg) | 300 |
Dimension (mm) | L | 1100 |
| W | 800 |
| H | 1250 |
Structure & Appearance:
Our products adopt ship-shape chassis-mount structure to ensure oil
leak proof and protect the environment from pollution. The whole
equipment is characterized by small size. Light weight and
convenient to move around. Various sizes and configurations
available
Available in mobile or stationary options
Color of machine can follow customer's favor.
Working principle:
The oil is sucked into heating system by vacuum and atmosphere
pressure difference, after heating, large mechanical impurities
will be removed by coarse filters, then demulsifying filter
separate the mass water from oil and discharge from cooling system.
When getting into big vacuum chamber, the oil become oil mist by
sprayer, the moisture dissolved in oil is evaporated and discharged
through vacuum pump. After dehydration, the fine filter will do
precision filtration and 99.5% of particles over 1.0 micron are
removed. Then the cleaned oil is pumped out by oil pump.
