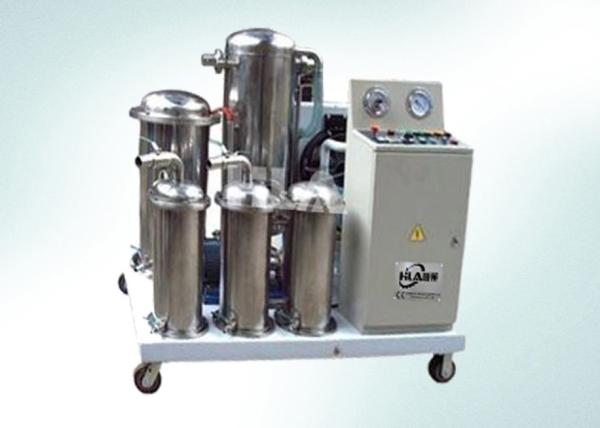

Stainless Steel Vacuum Oil Purifier For Phosphate Ester Fire
Resistant Oil
Application:
Series DFR fire-resistant oil purifier is especially designed for
phosphate ester fire-resistant oil, this machine can treat and
regenerate the degenerative fire-resistant oil, removing
acid,pigment, gas, water and particles.
This machine body uses the special metal materials which are
compatible with fire-resistant oil,combinedwith technologies of
vacuum dewatering, multi-stage filtration system and new adsorbent
to ensure treated oil achieve new fire-resistant oil properties.
Series DFR is the necessary purifying equipment for the sectors
which use fire-resistant oil, it can be online working and
oil-filling.
Features&Advantages:
1. Use of special metal material compatible with fire-resistant
oil, combined with technologies of vacuum dewatering, multi-stage
filtration system and new adsorbent
2. Stainless steel machine body, pipes and filtering components,
reliable, anti-corrosion, durable.
3. Duplex-Stereo film evaporation technologywith unique and
advanced dewatering, degassing components to effectively remove
water, gas, particles and volatile matter.
4. Advanced medium cooling system
5. Separate large mount of water and also remove micro amount of
water from oil.
6. Special film evaporation and molecule evaporation technology
enables quick demulsifying and make the turbid and emulsified oil
clear.
7. The film evaporation and molecule evaporation technology is of
lifetime service(above 20 years), which avoids the periodic
demulsifying filter replacement and also reduces the cost of
purification and work intensity.
8. With strong impurities removing capability, its automatic
backwash filter element can remove large mount of impurities. Large
area deep level precision filtration material can remove the
granules from the oil, serving as displacement of oil system
cleaning device, which brings serious contaminated oil system back
to within the “Serving Steam Turbine Oil Contamination Control
Standard”.
9. High automation, small size, safe and reliable. The machine
adopts infrared liquid level automatic control device to achieve
the man-machine detachment, which makes the operation simpler and
more reliable.
Technical Specification:
| Model | Unit | DFR10 |
| Capacity | L/H | 600 |
| Working vacuum | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤0.3 |
| Demulsifying value | min | ≤15/min(GB/F7035)+ |
| Water content | ppm | ≤5 |
| Gas content | % | ≤0.1% |
| Acid value | mKOH/g | ≤0.05 |
| Resistance value | Ω | ≥6 x 109 Ω |
| Filtering accuracy | micron | ≤1 |
| Cleanness | | ≥ NAS 6 grade |
| Power supply | | 380V 50HZ(As per user's option) |
| Working noise | dB(A) | ≤65~80 |
| Temperature range | ºC | 40~60 |
| Heating power | Kw | 9 |
| Total power | Kw | 12 |
| Weight | Kg | 350 |
| Dimension | L | mm | 1200 |
| W | mm | 950 |
| H | mm | 1600 |
