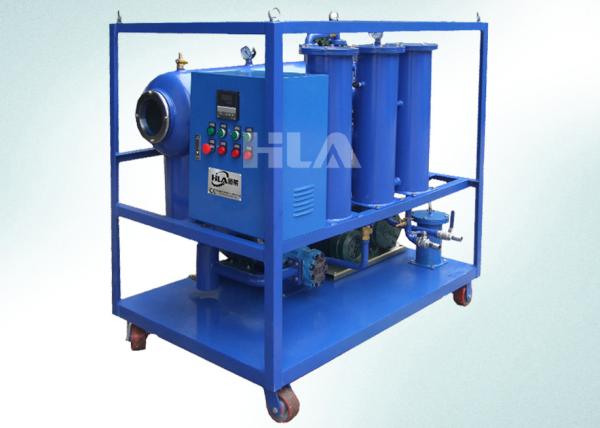

380V Steam Turbine Oil Filtration Machine Anti corrosion NAS 6 Grade
Cleanness
Application:
Series TVP vacuum oil purifier is used for treating the unqualified
turbine oil, especially the seriously
emulsified turbine oil, lubricating oil and cooling oil to removing
a large amount of moisture and impurity.This series, which can
rapidly and effectively remove the water, gas and impurities aiming
at turbine oil’s nature of high water content, easily emulsified
and high impurity content, make the oil reach new oil standard.
Meanwhile caused the metal parts of turbine steam to corrosion, bad
for the safe operation of steam turbine. So TVP series machine is
the special maintenance equipment for the power plant, power
station to clean the used turbine oil.
This machine breaks emulsification thoroughly, and the oil is very
difficult to be emulsified again after treatmentIts dehydration
volume is large and it can drain off the water on line.TVP series,
which prevent lubrication system from damage, can effectively
extend the lifetime of oil and protect turbine and other machines.
It is widely suitable for online processing of steam turbine, the
gas turbine, the hydraulic turbine's oil in electric power,
chemical industry, papermaking, metallurgy and so on to guarantee
the unit adjusting and the normal work of the lubrication system.It
used physical method remove the water, impurities and
gas(acetylene, hydrogen, methane, etc), it will not change the oil
components and performance.
Features:
▼ adopting high vacuum separation technology efficiently and
reliability thorough removal of gas in the oil by using coalescing
oil spray separator.
▼ Adoption of American fine filter element, fineness: 5μm, ß≥1000
▼ Low noise and long life of the oil transport system
▼ Adoption of American heating technique with the way of thermal
radiation, constant temperature control.
▼ The use of float valve and photoelectric oil level control,
eliminates supervision
▼ Adoption of French de-foaming technique to avoid oil leaking
▼ Controlled digitally and automatically by PLC
▼ Major electric apparatus are imported from America, so the
controlling system safe and reliable
Relative Information:
1. Maintenance
1). check and adjust after oil purifier works for a period of time
A. all the electric control apparatus
B. temperature controller
C. oil seals and motor couplings
D. clean filter elements, check pumps and motors
E. all the pipes for leaking
2). Clean the motor and change the lubricating grease
3). Check and add specified lubricating oil to vacuum pump
4). If oil purifier is not in use for one month or more, put it on
a dry, flat ground, close all valves and electric cabinet, cove the
whole machine with canvas
2. Customer Service
Installation
Commissioning
Complete Turnkey Applications
Spare parts
Service And Maintenance Schemes
Technical Support Network
Technical specification:
| Model | TVP250 |
| Capacity(L/min) | 250 |
| Working vacuum | -0.06～-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 0-100℃ |
| Water content | ≤10 ppm |
| Gas content | ≤ 0.1% |
| Demulsifying value | ≤15min(GB/F7035) |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤3 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 150 |
| Total power (kw) | 165 |
| Inlet/outlet(mm) | 60 |
| Weight (kg) | 1250 |
Dimension (mm) | L | 1900 |
| W | 1300 |
| H | 2000 |
Available Parts for customer option:
1. Fully closed-type for protecting oil purifier machine (weather
proof, vacuum proof, Waterproof, dustproof etc.)
2. Mobile trailer with enclosed type can move long distance working
in field.
3. Choosing different vacuum pump, oil pump and electric parts(such
as SCHNEIDER, SIEMENS, LEYBOLD,ABB etc.)
4. PLC controller for operation fully-automatically and explosion
proof materials
On-line Moisture detector, flow meter, viscosity tester, acidity
tester etc.
