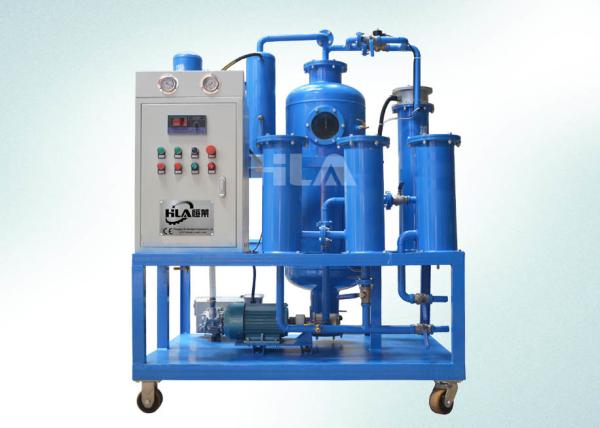

Waste Turbine Oil Recycling / Oil Filtration Machine For Geothermal
Power Station
Application:
Series TVP vacuum oil purifier is special designed for turbine oil,
lubricating oil and cooling oil to removing a large amount of
moisture and impurity. Such as power plants, power station steam
turbine in the process of running, moisture, dust and impurities
will be mixed in the turbine oil, will accelerate the oxidation of
oil, and changed with foam, fouling and oil sludge, cause the oil
emulsified serious, and lead to oil-water separation more
difficult, reduce the oil performance of lubrication, speed,
cooling etc. Meanwhile caused the metal parts of turbine steam to
corrosion, bad for the safe operation of steam turbine. So TVP
series machine is the special maintenance equipment for the power
plant, power station to clean the used turbine oil.
Series TVP oil filtration machine is also widely used for filtering
turbine lubricating oil in electric power,
metallurgical, chemical engineering industries. It is good at
emulsion breaking, dehydration and removing soap,gelatin, acid,
pigment and metal particulates in emulsified turbine oil and
low-viscosity lubricating oil as well as turbine oil used in other
machinery and electric power equipment.
Features:
■ The USA coalescence separation atomization technology, make the
oil at best process in vacuum system;after the water and gas within
the oil gain enough time to be vaporizing. It can thoroughly dear
away the liquid water, 100% free water and 80% dissolved water.
■ Constant temperature heating mode, the temperature within the
range of 0-100 ℃ adjust at will, heater
have Multiple control group
■ Automatic oil level control technology, to realization of
man-machine separation
■ Heater adopt interlocked protective system, avoiding blank
heating.
■ Adopt the France vacuum defoaming technology, avoid the oil leak.
■ Oil pump using slow down, step-down principle, reduce noise.
■ Special polymer materials as filter medium with the functions of
broken emulsion, dewatering, removing particles.
■ Fault protection, pressure protection, discharge fault alarm and
motor alarm.
■ PLC programmable controller, enabling unattended.
■ With distinctive removing impurities techniques filtering through
double FH trapezoidal network and absorbing by high polymer
material, this machine can make the β3equal or surpass 200 and make
the cleanness lower grade 6(NAS1638).
■ With the trapezoidal, spiral, automatic back flushing system.
■ With the advanced dielectric condensation devices.
Special Specification:
TVP Oil Purifier can remove contamination down to less than 5
micron, water content down to 10 PPM, air & gases down to 0.1% and
lower oxidised molecules of oil from turbine oils.
Removal of free and emulsified water prevents formation of varnish
and bacteria. Turbine oil is 98% base oil and it has approximately
2% additives. By keeping the oil free from water and contamination
down to less than a micron, TVP Series Oil Filtration Systems
protects the turbine oil additives, which can then continue to
perform their essential functions for a very long time thereby
increasing oil life tremendously.
Technical specification:
| Model | TVP100 |
| Capacity(L/min) | 100 |
| Working vacuum | -0.06～-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 0-100℃ |
| Water content | ≤10 ppm |
| Gas content | ≤ 0.1% |
| Demulsifying value | ≤15min(GB/F7035) |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤3 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 60 |
| Total power (kw) | 65 |
| Inlet/outlet(mm) | 48 |
| Weight (kg) | 800 |
Dimension (mm) | L | 1650 |
| W | 1100 |
| H | 1800 |
Consumable Material & After-sales Service:
We take full advantage of our years of experience in oil filtration
filed to supply reliable machine. Special engineered design
features, top-quality components and workmanship ensure years of
maintenance-free operation and performance.
Usually the only consumable material of the machine is the filter
elements. All other parts or elements seldom have problem because
of high and stable quality.
If any problem, we will supply replacing parts or send engineer to
your site (free within warranty period, charge reasonably beyond
warranty period).
Contact us for more information as (pumps, heater, filter elements,
PLC, flow meter, digital vacuum gauge, VFD….)
Available option:
1. Inline Digital Particle Monitor
2. Inline Digital Moisture Indicator
3. Fullers Earth Towers for Acid Removal
4. Explosion Proof Components
5. Open Flatbed or Enclosed Trailer
